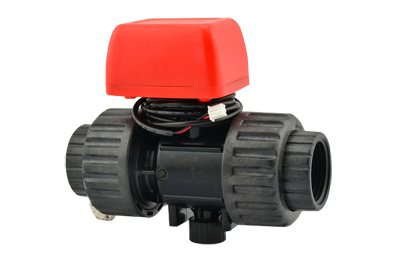

Plastic Electric Ball Valves
The valve body uses PPO material with an IP65 protective grade, allowing it to work great in humid environments. The valve core uses ceramics that are wear resistant and feature a service life of more than 100,000 uses. These plastic electric ball valves are suitable for controlling an array of media, including water, air, oil, acid and alkali corrosive mediums, and low viscosity fluids in the chemical industry.
Performance Parameters
Operating pressure: 0-1.6MPa
Operating temperature: 0-60℃
Material for valve stem: 316L（Harley alloy steel B or C is available upon request.)
Seals material: EPDM or Fluororubber(optional)
Protection class: IP65
Product Models
Plastic Two-Way Electric Ball Valves through threaded joint
| Plastic Two-Way Electric Ball Valves through threaded joint. | Model | Nominal diameter | Wiring type | Open/close time | Input Voltage | Motor power | Actual Power |
| Q911713-15/20 Q911013-25 | DN15 thread size: G1/2 glue socket: φ20.2 DN20 thread size: G3/4 glue socket: φ25.2 DN25 thread size: G1 glue socket: φ32.2 | 2 wires●positive and negative connection | 12.5s/3s | DC6V/12V/ 24V | 2W-4W | 0.4W-2.5W | |
| Q911712B-15/20Q911012B-25 | 2 wires● auto return | 12.5s/3s | DC9V-24V | ||||
| Q911712B1-15/20 Q911012B1-25 | 3 wires● auto return | 12.5s/3s | DC12V-24V | ||||
| Q911713C-15/20 Q911013C-25 | 3 wires common line | 12.5s/3s | DC6V/12V/ 24V | ||||
| Q911715C-15/20 Q911015C-25 | 3 wires●AC220V | 12.5s | AC220V | 6W | 0.4W-2.5W | ||
| QQ911713D-15/20 QQ911013D-25 | 5 wires●position feedback | 3s | DC24V | 4W | 0.4W-2.5W | ||
| Q911013-32(40/50) | DN32 thread size: G1/4 glue socket: φ40.2 DN40 thread size: G1/2 glue socket: φ50.5 DN50 thread size: G2 glue socket: φ63.2 | 2 wires● positive and negative connection | 7.5s | DC12V-24V | 6W | 2W | |
| Q911013C-32(40/50) | 3-wire common line | 7.5s | DC12V-24V | ||||
| Q911013D-32(40/50) | 5 wires●position feedback | 7.5s | DC24V | ||||
| Q911015E-32(40/50) | 6 wires●signal feedback | 12s | AC220V | DN40：11W DN50：14W | DN32:1W DN40: 3W DN50:3.5W |
